CIVIL TECHNOLOGY PAPER GRADE 12 MEMORANDUM - NSC PAST PAPERS AND MEMOS NOVEMBER 2016

CIVIL TECHNOLOGY PAPER
GRADE 12
NSC EXAM PAPERS AND MEMOS
NOVEMBER 2016

MEMORANDUM

QUESTION 1: CONSTRUCTION, SAFETY AND MATERIAL
1.1.1 The worker should have ensured that:

  • the grinder and grinding blade/disc were inspected for defects before  use. √
  • the angle grinder is used for the intended purpose only. √
  • correct blade is correctly fitted for the purpose.
  • he/she is trained to use the machine correctly.
  • do not force the tool. (2)

ANY TWO OF THE ABOVE OR ANY OTHER ACCEPTABLE ANSWER
1.1.2

  •  Hard hat/safety helmet √
  • Safety goggles/goggles √
  • Overall
  • Safety gloves/gloves

ANY TWO OF THE ABOVE (2)
1.1.3 The machine makes a loud noise √ that will damage your hearing. √ It is the rule or regulation on a building site to protect the hearing of workers. ANY OF THE ABOVE (2)
1.1.4

  • dust mask
  • face shield
  • ear protection/ear plugs/ear muffs
  • safety shoes √ (1)

ANY ONE OF THE ABOVE
1.2

1.2.1

    •  Water √
    • Patent sealer
    • Wet sand
    • Hessian
    • Canvas or protective covering
    • Plastic sheeting
    • Straw
    • Waterproof paper
      ANY ONE OF THE ABOVE (1)

1.2.2 7 to 28 days √ (1)

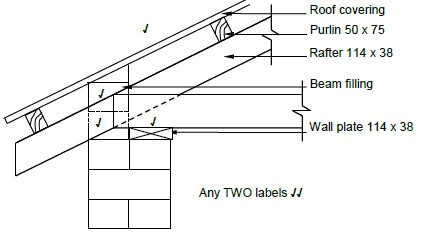

1.3 1.3 memo Any TWO labels √√

ASSESSMENT

CRITERIA

MARK

CANDIDATE'S  MARK

Roof covering correctly  drawn

1



Beam filling correctly  drawn

2



Wall plate correctly

drawn

1



Any TWO labels

2



TOTAL

 (6)

Single line for roof covering is acceptable.
Wall plate in good proportion acceptable.
1.4

  • More battens are used √
  • More roof trusses are used to carry weight of tiles √
  • Clay/concrete tile more expensive than corrugated iron sheeting
  • More labour intensive
  • Needs roof underlay (2)
    ANY TWO OF THE ABOVE

1.5

  • Tiles /cladding√
  • Paint (1)
    ANY ONE OF THE ABOVE

1.6

  • Tiles last longer/easy to clean/ water resistant √
  • Paint does not last as long as tiles, easy to clean.
  • Tiles/paint gives attractive/decorative appearance.
  • Protect plaster.
    ANY ONE OF THE ABOVE (1)

1.7

1.7.1 Channel-iron/U beam √ (1)
1.7.2 Exposed steel is prone to rust if not treated. √ (1)
1.7.3

    • Paint the metal. √
    • Can be galvanised.
    • Powder coating/ epoxy coating.
    • Can be covered with oil. (1)
      ANY ONE OF THE ABOVE

1.7.4

    • Channel iron is used for bracing or as joists. √
    • Frame of steel structures/struts/roof structures (1)
      OR ANY OTHER ACCEBTABLE ANSWER

1.8

1.8.1

    • Three quarter bat/brick
    • 165 mm x 110 mm. √ (1)
      ANY ONE OF THE ABOVE

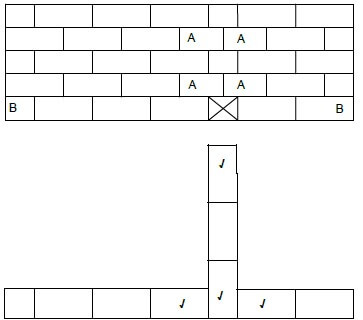

1.8.2  1.8 memo (4)

ASSESSMENT CRITERIA

MARK

CANDIDATE'S  MARK

Stretcher course

2



Header course

1



Correctness of T-junction

1



TOTAL



1.9

  • Cement fibre ceiling boards √
  • Match board ceiling boards
  • Steel ceilings
  • Gypsum boards
  • Knotty pine ceilings
  • PVC/plastic/polystyrene ceilings(1)
    ANY ONE OF THE ABOVE

1.10

  • To allow excess water or damp to escape √
  • keeping the inner wall dry
  • Ventilation(1)
    ANY ONE OF THE ABOVE

[30]

QUESTION 2: ADVANCED CONSTRUCTION AND EQUIPMENT
2.1

2.1.1 D √ (1)
2.1.2 L √ (1)
2.1.3 J √ (1)
2.1.4 H √ (1)
2.1.5 K √ (1)
2.1.6 A √ (1)
2.1.7 M √ (1)
2.1.8 I √ (1)
2.1.9 G √ (1)
2.1.10 B √ (1)

2.2

2.2.1 Chalk line √
 USE

  • To draw a straight line on a surface, by snapping the line. √
  • Lay out walls on foundation.
  • Some types can be used as a plumb bobs.
  • Draw long lines on floors.(2)
    ANY TWO OF THE ABOVE

2.2.2 Try square √
 USE

  • Marking lines perpendicular to surfaces of materials. √
  • Testing squareness, straightness.
  • Calibrated blade can be used for measuring.
  • As a straight edge to test whether small surfaces are flat and straight.  (2)
    ANY TWO OF THE ABOVE

2.2.3 Mitre square √
 USE

  • The mitre can be used to check/end marks 45°angles. √
  • Test squareness of corners.
  • Test mitre angles/and mark them.
  • Marking lines perpendicular to surfaces are flat and straight.
  • Testing squareness, straightness of surfaces.
  • Calibrated blade can be used for measuring.
  • As a straight edge to test whether surfaces of materials. (2)
    ANY TWO OF THE ABOVE

2.2.4 Sliding bevel √
USE

  • The blade is adjustable for setting out and testing of any  angles. √
  • Draw inclined or oblique lines as well as for the testing of angles.
  • Draw angles other than 90˚
  • Copying angles from one surface to another. (2)
    ANY TWO OF THE ABOVE

2.3

2.3.1

    • The tensile strength of the concrete is compromised. √
    • Weakens the structure/ structure will break easily/ collapse. √
    • Will not be able to resist heavy loads.  (2)
      ANY TWO OF THE ABOVE

2.3.2 To strengthen the concrete where it is the weakest against tensile  strength. √ (1)
2.3.3

Stirrups strengthen concrete against shear forces. √
Shear forces are the greatest next to the support,
Stirrups resist shear stress. (1)

2.4

2.4.1 Slump test √ (1)
2.4.2 This test is used to test the workability of concrete/ consistency of  the concrete √ (1)
2.4.3 For every new/fresh batch of concrete that is mixed √ (1)

2.5

  • Cavity walls are to prevent the penetration of water into the wall as they  have better water proofing qualities. √
  • Cavity walls help to protect the inner wall of a house against moisture. √
  • Cavity walls provide insulation against extreme temperatures and  noise.
  • Avoid expensive external rendering.
  • Enable the use of cheaper or alternative materials for the inner  construction.
    ANY TWO OF THE ABOVE (2)

2.6

2.6.1

A – Compression force/pushing forces √
B – Tensile force/bending forces √
C – Lateral force √ (3)

2.7

2.7.1 Round/circular/cylindrical column formwork √ (1)
2.7.2 Hardboard/plywood/pvc/galvanised/metal sheets √ (1)
2.7.3 Bolt and nut/threaded rods with nuts/clamp √ (1)
2.7.4 Apply form oil/emulsion oil/releasing agents to formwork √ (1)

2.8

  • A rib and block floor is very quick to install √ (1)
  • quicker than in situ concrete floor
    ANY ONE OF THE ABOVE

2.9 2.9 memo

ASSESSMENT

CRITERIA

MARK

CANDIDATE'S

MARK

Ribs

2



Block

1



Reinforcing on top of  or inthe rib



Hollow in block

1



TOTAL



(5)

[40]

QUESTION 3: CIVIL SERVICES

3.1 3.1 memo

Labelling not required (2)
3.2 40/50 mm √ (1)
3.3

3.3.1

A Ventilation pipe/breather pipe/gas escape pipe √ (1)
B Inlet pipe/Inflow pipe/Influent √ (1)
C Settling chamber/Chamber 1 √ (1)
D Discharge chamber/Chamber 2 √ (1)
E Manhole cover/Manhole lid/Cover √ (1)
F Outlet pipe/Effluent √ (1)

3.3.2 The raw sewerage will be broken down by anaerobic/bacterial  action. √ (1)
3.3.3

    • G allows the liquids to flow from chamber C to chamber D. √
    • Will also balance the liquid levels.(1)
      ANY ONE OF THE ABOVE

3.3.4 The liquids in D will flow out through F to a French drain. √ (1)
3.3.5 The level of the liquids will be the same. √ (1)
3.3.6

    • The water coming from the bath or sink contains soap  (chemicals) that is poisonous to the bacteria and will hinder the anaerobic/bacterial process. √ (1)
    • It will fill up quicker if the frech drain gets saturated.
      ANY ONE OF THE ABOVE

3.4 Storm water systems are used to carry storm water to rivers or low-lying  dams. √ (1)
3.5 If you direct storm water into a sewerage system:

  • the water will flood the reticulation plant. √
  • raw sewerage will overflow into rivers and pollute water sources. √
  • it is illegal to direct rain or storm water into a sewerage system.
    ANY TWO OF THE ABOVE (2)

3.6 Pressure control valves (pressure-reducing valves) are used to ensure that:

  • a constant pressure is maintained in the water installation√
  • prevent pipes from bursting
  • the pressure rating is in accordance with the pressure rating of the  geyser.
    ANY ONE OF THE ABOVE (1)

3.7

  • An elbow will be used to change the direction of a pipe √
  • A T-coupler will be used to split the water supply into two different flow directions/ to combine two different flow directions into one(shower).√ (2)
    ANY TWO OF THE ABOVE

3.8 Thermostat √ (1)
3.9 Gravity geyser/Low pressure geyser √ (1)
3.10 Black √ Absorbs the most heat √ (2)

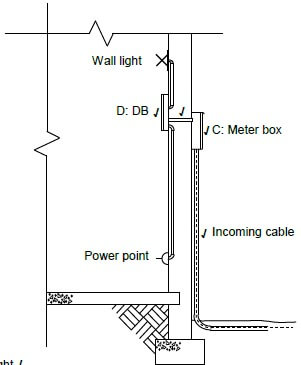

3.11 3.11 memo

A: Wall light √
B: Power point/Socket outlet/Switch Socket outlet/Plug √(2)

ASSESSMENT CRITERIA

MARK

CANDIDATE'S MARK

Incoming cable to meter box

1



Incoming cable to DB

1



Meter box

1



Distribution board

1



TOTAL

4

 (4)

ANY OTHER WAY OF INDICATING CONDUIT PIPES

[30]

QUESTION 4: QUANTITIES, MATERIALS AND JOINING
4.1

4.1.1 Door stile √ (1)
4.1.2 50 mm/50 √ (1)
4.1.3 600 √ (1)
4.1.4 3 √ (1)
4.1.5 693 mm/693 √ (1)
4.1.6 1 907 mm/1 907 OR 1 904 mm/1 904 √ (1)
4.1.7 20 mm/20 √ (1)

4.2

4.2.1 B √ (1)
4.2.2 A √ (1)
4.2.3 D √ (1)
4.2.4 D √ (1)
4.2.5 A √ (1)
4.2.6 D √ (1)
4.2.7 C √ (1)

4.3.1

D



Area to be plastered:



Length of ONE short wall:
= 4 000 mm - 2(220 mm)
= 3 560 mm √



Length of ONE long wall
= 8 000 mm - 2(220 mm)
= 7 560 mm √



Total length of one short and one long wall
= 3 560 mm + 7 560 mm
= 11 120 mm √

        (3)

2/

11,12



Area of internal walls before deductions:



2,7 √

60,05 m² √

  (2)


1/

1,2



Area of window opening:



0,9 √

1,08 m² √

  (2)


1/

2,1



Area of door opening:



0,9 √

1,89 m2 √

  (2)



Total wall area to be plastered



√ √ √

60,05 m² – 1,08 m² - 1,89 m²



= 57,08 m² √ need to be plastered

 (4)

4.3.2



Volume of plaster:

1/

√

57,08 m2




√

0,012 m

0,68 m3

 (3)

If candidates did not use the dimension paper/sheet 2 marks should be  deducted

[30]

QUESTION 5: APPLIED MECHANICS
5.1

5.1.1 675 mm² √ (1)
5.1.2 4 800 mm² OR 4 400 mm² √ (1)
5.1.3 400 mm² √ (1)
5.1.4 5 075 mm² √ (1)
5.1.5 30 mm √ (1)
5.1.6 95 mm √ √ (2)
5.1.7 40 mm √ (1)
When the wrong unit were used the learner will be penalised with ONE mark.

Copyright reserved Please turn over

Civil Technology 15 DBE/November 2016  NSC – Memorandum

5.2 5.2 memo a

DIAGRAM A: SPACE DIAGRAM
5.2 b memo

DIAGRAM B: VECTOR DIAGRAM/FORCE DIAGRAM

NOT ACCORDING TO SCALE

USE A MASK TO MARK THIS QUESTION

MEMBER

NATURE

MAGNITUDE

BC

Strut √

OR ---

65 N √ (Size to be determined as per vector  diagram) OR 0 OR no force

CD

Tie √

--------------

DA

Tie √

32 N √ (Size to be determined as per vector  diagram)

BD

Strut √

--------------

(6)
Tolerance of 1 N to either side

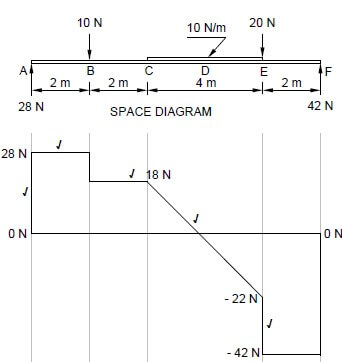

5.3.1 5.3.1 memo
SHEAR FORCE DIAGRAM

USE A MASK TO MARK THIS QUESTION

ASSESSMENT CRITERIA

MARKS

CANDIDATE'S MARK

Drawing correct

5



Indicate all values of shear  forces on drawing

1



Correct application of scale

1



TOTAL

7



5.3.2 Calculated from the left:

BMd: = (28 x 6) - (10 x 4) - (20 x 1) √
 = 168 - 40 - 20 √
 = 108 Nm √

 OR

Calculated from the right:

BMd: = (42 x 4) - (20 x 2) - (20 x 1)
 = 168 - 40 - 20
 = 108 Nm (3)

[30]

ANSWER SHEET 6.1

NO.

QUESTIONS

ANSWERS

MARKS

Name the scale used for the site plan.

1:200 √

1

2

State the colour that you will use to  indicate the proposed dwelling on the  site plan.

Red √

1

Identify number 1?

Rodding eye √

1

Identify the line at number 2?

Building line √

1

Identify number 3

Sewer pipe/drainpipe √

1

6

Determine the distance from the  boundary line to the proposed dwelling  on the right hand side of the building?

5 000 mm/5 m √

1

Identify number 4

Manhole √

1

Identify number 5

Municipal connection √

1

9

Draw the roofline of a hipped roof for  the building indicated in the next  column

6.1. q9 memmo

4

10

Calculate the perimeter of the

proposed dwelling.

64 000 mm/64 m √ √

2

11

What elevation will be closest to Long Street?

West elevation √

1



TOTAL

15

QUESTION 6: GRAPHICS AND COMMUNICATION
ANSWER SHEET 6.2

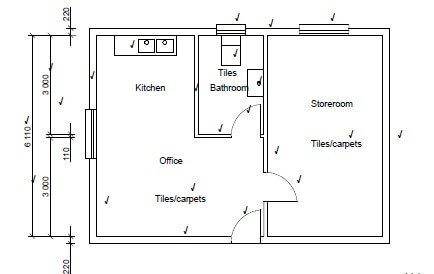

6 memo

ASSESSMENT

CRITERIA

MARKS

LM

External Walls

4



Internal Walls

3



Windows

3



Doors

3



Wash basin

1



Water closet

1



Double bowl sink

1



Dimensions

4



Floor coverings

2



Application of scale One or two incorrect   = 3
Three or four incorrect  = 2
More than five  incorrect = 1
No measurement  correct = 0

3



TOTAL

25



NOT TO SCALE: USE A MASK TO MARK THIS QUESTION ONE MARK SHOULD BE DEDUCTED IF JUNCTIONS AT WALLS ARE  CLOSED
ONE MARK SHOULD BE DEDUCTED IF INTERNAL DOORS HAVE A  WALL BETWEEN THE OPENING

[40]
[200]

Last modified on Friday, 11 June 2021 08:37
