ENGINEERING GRAPHICS AND DESIGN
PAPER 2
GRADE 12
NSC PAST PAPERS AND MEMOS
NOVEMBER 2016

INSTRUCTIONS AND INFORMATION

1. This question paper consists of FOUR questions.
2. Answer ALL the questions.
3. ALL drawings are in third-angle orthographic projection, unless otherwise stated.
4. ALL drawings must be completed using instruments, unless otherwise stated.
5. ALL answers must be drawn accurately and neatly.
6. ALL the questions must be answered on the QUESTION PAPER as instructed.
7. ALL the pages, irrespective of whether the question was attempted or not, must be re-stapled in numerical sequence in the TOP LEFT-HAND CORNER ONLY.
8. Proper planning is essential in order to complete all the questions.
9. Print your examination number in the block provided on every page.
10. Any details or dimensions not given must be assumed in good proportion.

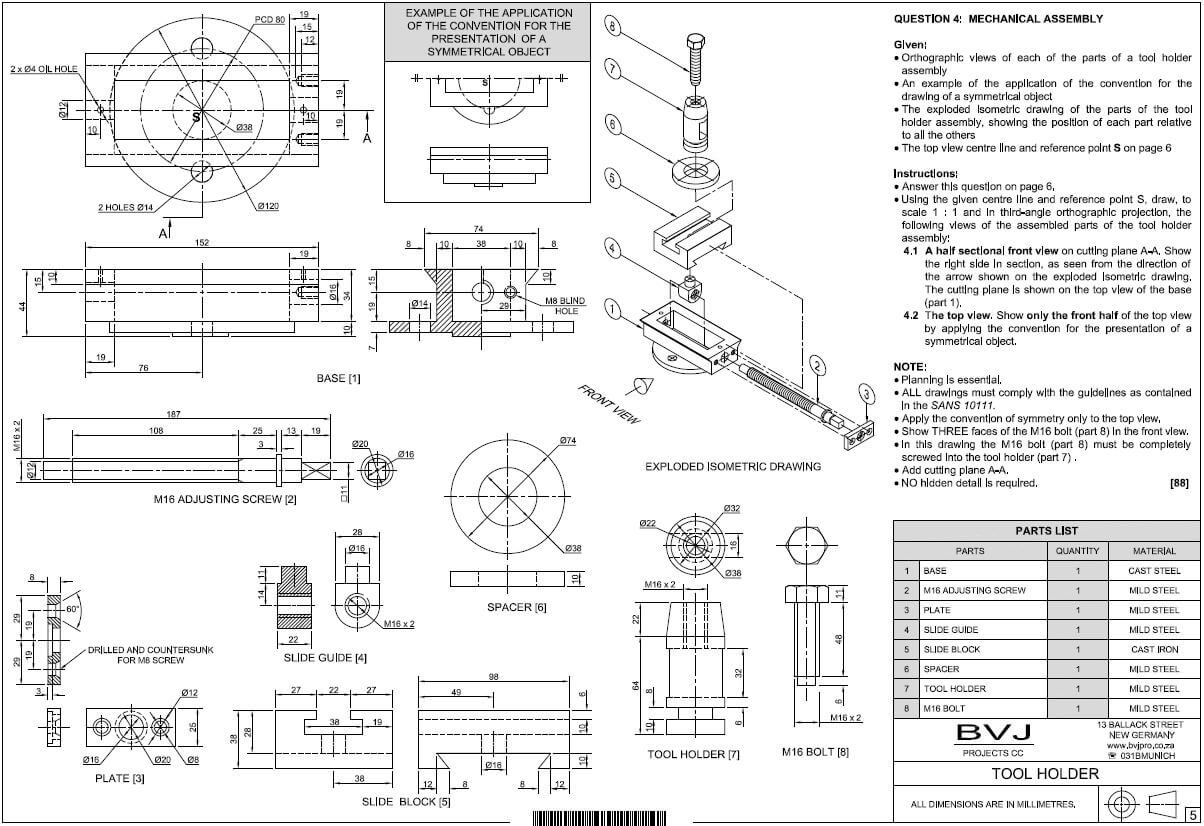

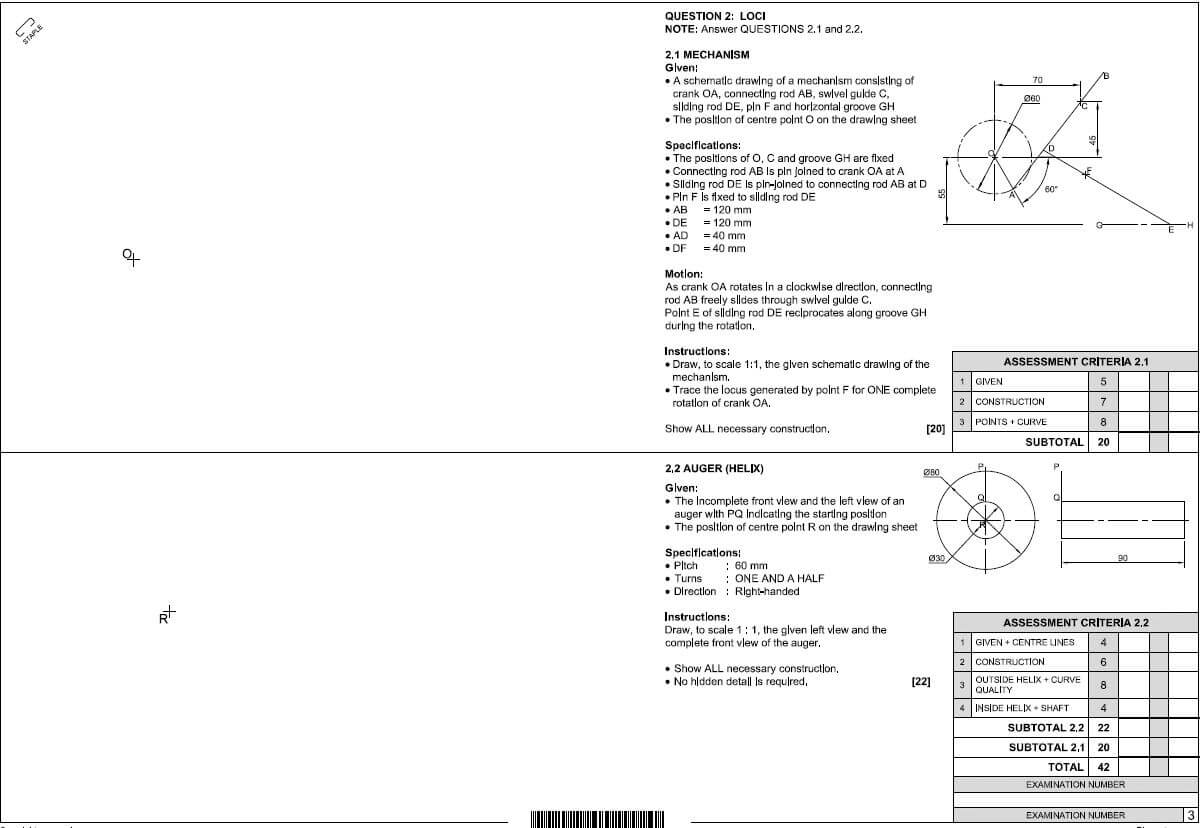

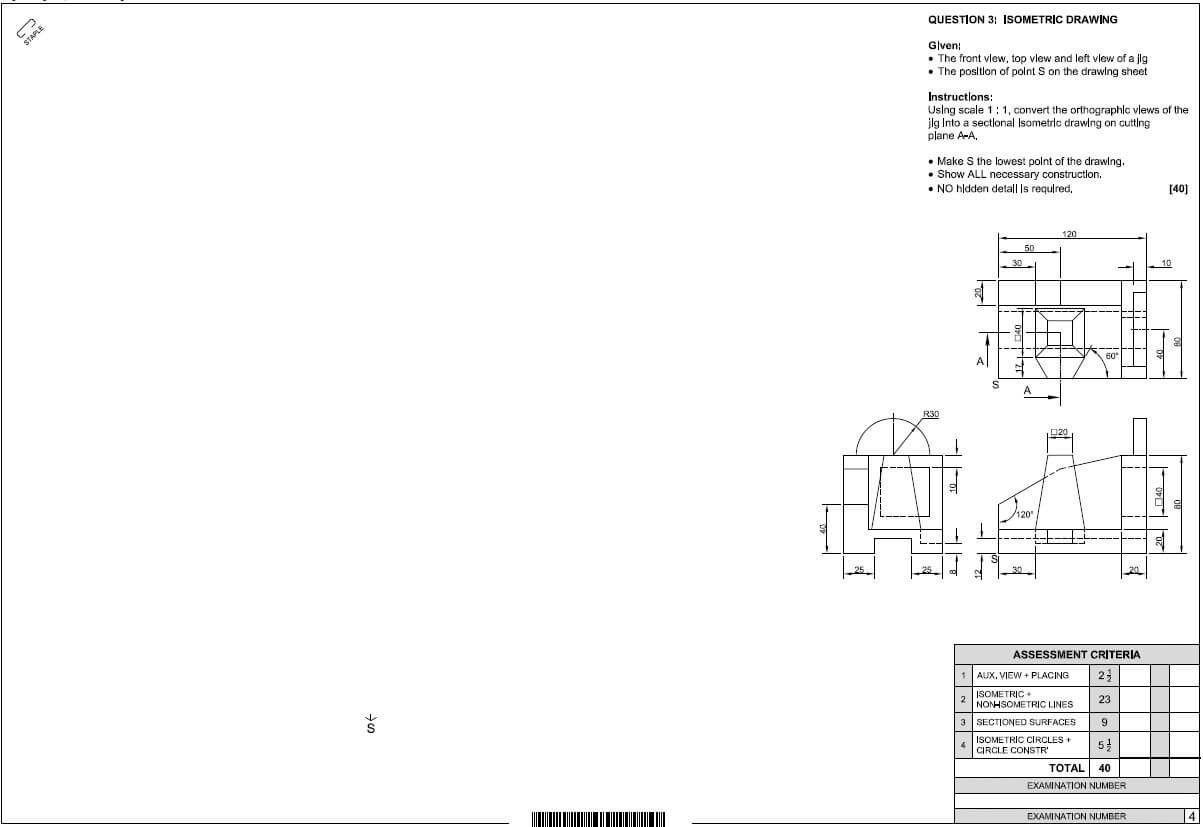

QUESTIONS

QUESTION 1: ANALYTICAL (MECHANICAL)
Given:
Three views of a trigger mechanism assembly, an enlarged view, a parts list, a title block and a table of questions. The drawings have not been prepared to the indicated scale.
Instructions:
Complete the table below by neatly answering the questions, which refer to the accompanying drawings and the title block. [30]
