QUESTION 1
1.1 D ✓✓ (2)
1.2 B ✓✓ (2)
1.3 A ✓✓ (2)
1.4 B ✓✓ (2)
1.5 A ✓✓ (2)
1.6 A ✓✓ (2)
1.7 B ✓✓ (2)
1.8 C ✓✓ (2)
1.9 A ✓✓(2)
1.10 A ✓✓ (2)
[20]

QUESTION 2
2.1
2.1.1 It is called a projectile ✓ (1)
2.1.2 OPTION 1
Data: vi = 15 m·s^-1,
g = - 9,8 m·s^-2
hmax = ?
vf = 0 m.s^-1 at max height
(Let downward be negative)
vf2 = vi2 + 2gΔy ✓
02 ✓ = (15)2 + 2(-9,8)( Δy) ✓
19,6Δy = 225
∴ Δy = hmax = 11,48 m ✓

OPTION 2
[for upward motion]
vf = vi + g Δt
0 = 15 + (– 9,8) Δt ✓
Δt = 159,8 = 1,53s
Δy = viΔt + 12 gΔt2 ✓
=(15)(1,53)+ 12(− 9,8)(1,53)² ✓
∴ Δy = hmax = 11,48 m ✓ (4)
OPTION 3
vf = vi + g Δt
0 = 15 + (– 9,8) Δt ✓
Δt = 15
       9,8
= 1.53s
Δy = vf + vi 2 Δt ✓
= 0+ 15 2 × 1,53 ✓
∴ Δy = hmax = 11,48 m ✓

2.1.3 OPTION 1
Δt = ? vf = vi + g Δt ✓
Δy = viΔt + 12 gΔt² ✓
0 = 15Δt + 12 (-9,8)Δt² ✓
-9,8 Δt² + 30Δt = 0
-Δt(9,8Δt – 30) = 0
Δt = 309,8 = 3,06s✓
∴ Δt = 3,06s ✓ (3)

OPTION 2
vf = vi + g Δt ✓ [for upward motion]
0 = 15 + (– 9,8) Δt ✓
Δt = 159,8 = 1,53s
∴total time = 2(1,53)
= 3,06s✓
2.1.4 Δy = 8 m
Δt = ?
Δy = vi Δt + ½ gΔt² ✓
8✓ = 15 Δt + ½ (-9,8)Δt² ✓
4,9 Δt² -15 Δt + 8 = 0
Using a quadratic formula to find the roots:
Δt = −?±√?2−4??
              2?
= −(−15)±√(−15)2−4(4,9)(8)
                 2(4,9) ✓
= 15 ±√225−156,8
             9,8
= 15 ±8,26
        9,8
∴ Δt = 2,37s ✓or Δt = 0,69s ✓
Both values of Δt are acceptable (5)
2.1.5

(4)
2.2  (6)
[23]

QUESTION 3
3.1
3.1.1 Impulse is the product of the net force acting ✓on an object and the time the net force acts on the object ✓.
OR
It is a measure of how hard ✓and for how long does a net force act✓ on an object (2)
3.1.2 OPTION 1
Fnet Δt = m Δv ✓
= 0,045(45 – 0) ✓
= 2,03 N·s✓

OPTION 2
Impulse = Change in momentum
Δp = mΔv ✓
= 0,045(45 – 0) ✓
= 2,03 kgm·s-1
Impulse = 2,03 N·s ✓ (3)
3.1.3 Fnet = m ΔvΔt
=     2,03
   3,5 × 10⁻³ ✓
= 580 N ✓ (2)
3.2
3.2.1 Take direction towards the wall as positive
m = 60 g = 0,060 kg
vi = 12 m·s-1
vf = -10 m·s-1
Δp = ?
Δp = m(vf – vi) ✓
= 0,060✓ (-10 – 12) ✓
= -1,32 kg·m·s^-1
Δp = 1,32 kg·m·s-1✓ away from the wall ✓ (5)
3.2.2 1,32 N·s or 1,32 kg·m·s^-1 ✓ (1)
3.3
3.3.1 The total linear momentum of an isolated ✓system remains constant / is conserved. ✓ OR
The total linear momentum of an isolated system before collision ✓is equal to the total linear momentum after collision. ✓ (2)
3.3.2 There is a need to calculate the velocity of block m just before collision:
Em top = Em bottom
(EP + EK) top = (EP + EK) bottom ✓
mgh + 0 = 0 + ½ mv²
2gh = v²
v = √2gℎ
= √2(9,8)(3,6) ✓
= 8,40 m·s-1 ✓
m₁v_1i + m₂v2_i = m₁v_1f + m₂v_2f ✓
2,2 × 8,4 + 7 × 0 = 2,2 × 0 + 7 v_2f ✓
v_2f = 2,64 m·s-1 ✓ (6)
[21]

QUESTION 4
4.1
4.1.1

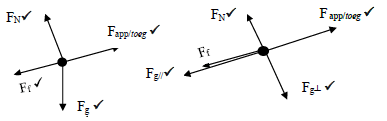

OPTION 1 Fg ✓ FN ✓ Ff ✓

OPTION 2 Both components (Fg// and ??┴)✓ FN ✓ Ff ✓ (3)

4.1.2 Fg// = mg Sin θ
Fg┴ = - mg Cos θ (opposite direction of FN)
Applying Newton’s Second law for the motion parallel to the slope:
Fg// + Ff = ma
mg Sin θ - μkFN = ma ……….. (1) for one of the two ✓
Applying Newton’s Second law for the motion perpendicular to the slope
FN + FG┴ = ma
FN – mg Cos θ = ma …………. (2)
(Since there is no motion perpendicular to the slope a = 0 m.s^-2)
∴ FN = mg Cos θ ✓ (Substitute FN in (1))
mg Sin θ - μk(mg Cos θ) = ma (dividing by m)
g Sin θ - μk(g Cos θ) = a ✓
(Substitute μk = 0,10, g = 9,8 m·s-2 and θ = 30°)
9,8 Sin30° – 0,10 × 9,8 × Cos30° ✓= a
∴ a = 4,00 m·s^-2 ✓(5)
4.1.3 v_f = vi + aΔt ✓
= 0 + 4 × 4 ✓
= 16 m·s^-1 ✓ (3)
4.2 4.2.1 When a net force/resultant force acts on an object, it produces the acceleration of the object in the direction of the net force/resultant force.
This acceleration is directly proportional to the net/resultant force ✓ and inversely proportional to the mass of the object. ✓(2)
4.2.2 Take down wards as negative

For the Elevator
Fnet = FT – m_Eg = m_Ea_E = - mEa (a_E = - a)
FT – m_Eg = - m_Ea ✓ ----------- (1)
For the counterweight
F_net = FT – m_Cg = m_Ca_C = m_Ca (aE = a)
FT – m_Cg = m_Ca ✓ ………… (2)
(2) – (1) : m_Eg - m_Cg = m_Ea + m_Ca
g(m_E - m_C) = a(m_E + m_C) ✓
9,8(1150 –1000)✓ = a(1150 +1000)✓
1470 = 2 150a
a = 0,68 m·s^-2✓
a = g(m_E− m_C )
        (m_E+ m_C)
= 9,8(1150− 1000)✓
      (1150+ 1000)✓ OR
= 0,68 m·s^-2 ✓ (6)
4.2.3 OPTION 1
For the counterweight
FT – m_Cg = m_Ca ✓
FT – 1000(9,8) = 1000(0,68) ✓
FT = 10 480 N ✓
OPTION 2
For the Elevator
FT – m_Eg = -m_Ea ✓
FT – 1150(9,8) = -1150(0,68) ✓
FT = 10 488 N✓ (3)
[22]

QUESTION 5
5.1 W = FΔxCosθ ✓
= 600 × 30 × Cos0°
= 600 × 30 × 1✓
= 18 000 J ✓ (3)
5.2
5.2.1 Wf = Ff ΔxCosθ ✓
= 50 × 6 × Cos180°
= 50 × 6 × -1✓
= - 300 J ✓ (3)
5.2.2 OPTION 1
{Positive marking from 5.2.1}
W_net = Wf + W_HC
= Ff ΔxCosθ + FappΔxCosФ
= - 300 ✓ + 300 × 6 × Cos 60° ✓
= - 300 + 900
= 600 J ✓
OPTION 2
{Positive marking from 5.2.1}
Fnet = Ff + FappCos 60°
= - 50 + 300 × 0,5 ✓
= 100 N
Wnet = Fnet Δ × Cosθ ✓
= 100 × 6 × 1 ✓
= 600 J ✓ (4)
5.3
5.3.1 The net work done on an object is equal ✓to the change in the kinetic energy of the object. ✓ OR
The amount of work done by a net force ✓on object is equal to the change in the object’s kinetic energy. ✓ (2)
5.3.2 Wnet = ΔEK ✓
Wf = EKf - EKf
Ff ΔxCosθ = ½mvf² - ½mvi²
6 000(Δx)Cos 180° ✓ = ½ (800)(0) - ½(800)(20,5)² ✓
- 6000 Δx = - 168 100
The braking distance = Δx = 28,02 m ✓ (5)
5.4
5.4.1 Wnet = ΔEK ✓
= ½ m(vf² - vi²)
= ½ (80)(25² - 0²) ✓
= 40(625)
= 25 000 J ✓
= 25 kJ (3)
5.4.2 fK = μKFN ✓
= 0,34(mg Cosθ)
= 0,34 × 80 × 9,8 ✓ × 1.09
                                   1,20 ✓
= 242,13 N✓ (4)
5.4.3 (4)
5.4.4 OPTION 1
W_net = W_App + W// + W_f
= F_appΔxCosθ + FG//ΔxCosФ + FfΔxCosФ
= F_appΔxCosθ + mgSinδΔxCosФ + FfΔxCosФ
= 450×1,2×Cos0°+80×9,8×0.5×1,2Cos180°+242,13×1,2×Cos180°
                                           1.2
= 450 × 1,2 × 1 + 80 × 9,8 × 0,5 × 1,2 × -1✓ + 242,13 × 1,2 × -1✓
                                              1,2
= 540 – 392 – 290,56
W_net = - 142,56 J✓
OPTION 2
Fnet = Fapp + Fg// + Ff
= Fapp + mgSinδ+ Ff
= 450 – (80 × 9,8 × 0,5 + 242,13) ✓
                                1,2
= - 118,80 N
Wnet = FnetΔ × Cosθ
= 118,80 × 1,2 × -1✓
= -142,56 J✓ (4)
5.4.5 E_P = mgh ✓s
= 80 × 9,8 × 0,5 ✓
= 392 J✓ (3)
[35]

QUESTION 6
6.1 6.1.1 Doppler effect is the change in frequency (or pitch) of the sound detected ✓ by a listener, because the sound source and the listener have different velocities relative to the medium of sound propagation✓
OR
Doppler effect is the apparent change in frequency of a wave✓when there is relative motion between the source and an observer✓
OR
Doppler Effect is an (apparent) change in observed/detected frequency (pitch), (wavelength) ✓ as a result of the relative motion between a source and an observer (listener) ✓.(2)
6.1.2 Towards the Listener.✓
The frequency of the sound waves heard by the listener is greater than the frequency of the sound waves emitted by the ambulance. ✓
The compressions in front of the source are closer together because the source is moving towards the previously emitted wavefront when the next wavefront is sent✓resulting in a decrease in wavelength✓ and a sound of higher pitch is heard.(4)
6.1.3 f_L = v ± v_L fs ✓
                v ± v_s
400 =    340    350✓
            340 - v_s
340 - v_s = 340  350
                400
v_s = 42.5 m·^s-1✓

6.2 6.2.1 f_L = v ± v_L fs ✓
                       v ± v_s
Whe the car approaches 450 =   343      f_s ✓
                                                   343 - v_s
f_s = 450(343-v_s)
            343
When the car moves away: 390 =   343   f_s
                                                        343 - v_s
f_s = 390(343+v_s)
            343
450(343-v_s) = 390(343+v_s)
    343                    343

154350 - 450v_s = 133770 + 390v_s
v_s = 24,5 m·^s-1 ✓ (7)

6.2.2 OPTION 1
f_s = 450(343-v_s) ✓
            343
f_s = 450(343 - 24.5) ✓
             343
f_s = 417.86Hz ✓

OPTION 2
f_s = 390(343+v_s) ✓
            343
f_s = 390(343 + 24.5)✓
            343
f_s = 417.86Hz✓ (3)

QUESTION 7
7.1
7.1.1 The magnitude of the electrostatic force exerted by one point charge (Q1) on another point charge (Q2) is directly proportional to the product of the charges ✓ and inversely proportional to the square of the distance (r) between them. ✓
OR
The magnitude of the electrostatic force between two point charges is directly proportional to the product of the magnitudes of the charges ✓ and inversely proportional to the square of the distance between them. ✓(2)
7.1.2 Electrostatic force exerted by Q1 on Q2:
F = k Q₁Q₂
              r² 
= (9×10⁹)(4×10⁻⁹ )(2×10⁻⁹)
                   0,04² ✓✓
= 4,5 × 10^-5 N, to the East
Electrostatic force exerted on Q2 by Q3:
F = k Q₂Q₂
            r² ✓
= (9×10⁹)(4×10⁻⁹ )(2×10⁻⁹)
                 0,06² ✓✓
= 3,0 × 10-5 N, to the East
Both forces are towards the same direction:
The net electrostatic force F_net = 4,5 × 10^-5 N + 3,0 × 10^-5 N ✓
= 7,5 × 10^-5 N ✓ (To the East) (7)
[9]
